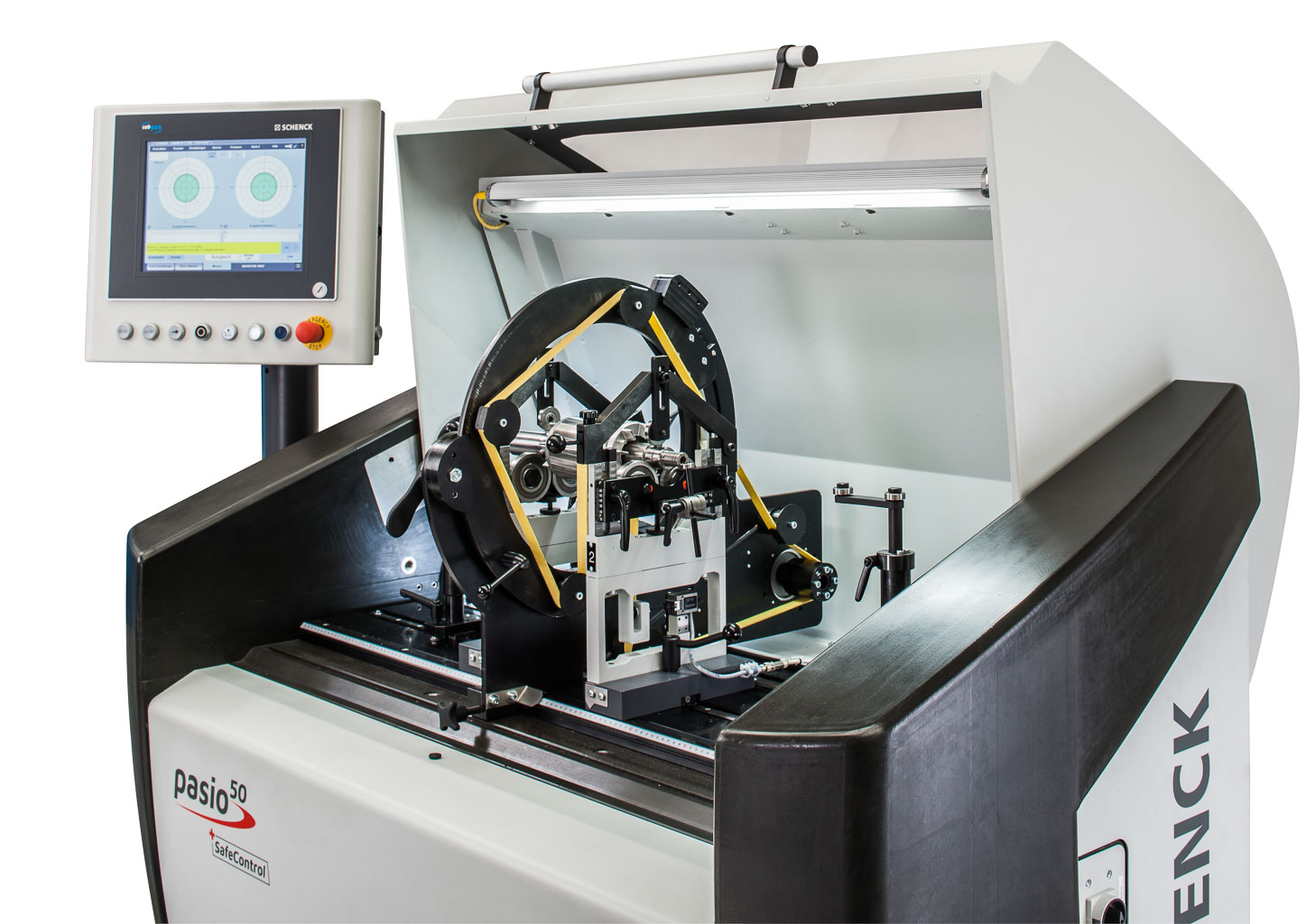

Horizontal Balancing Machines Pasio 50 - Schenck Japan

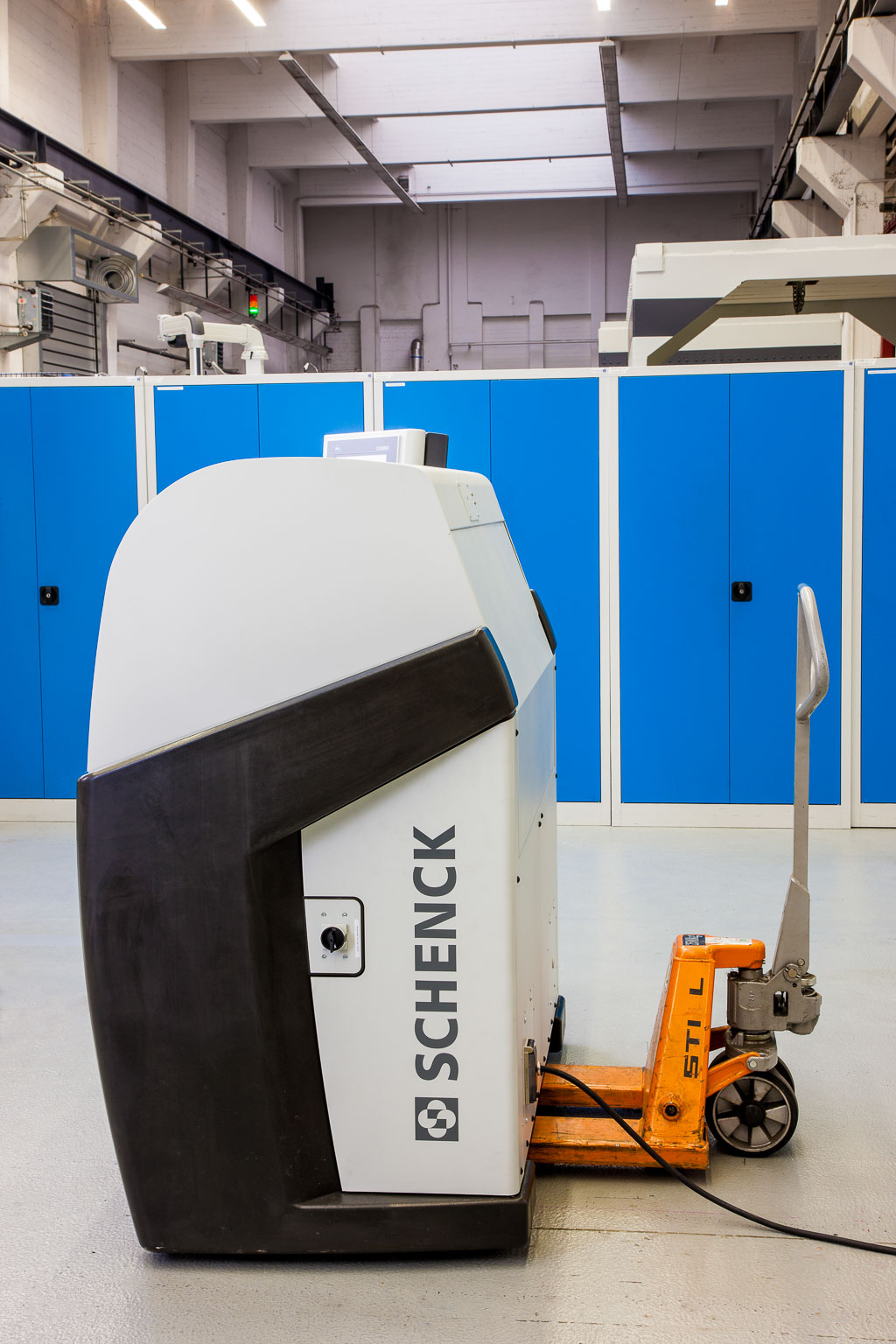

  • Compact design
  • Fast setup
  • Ergonomic operator concept

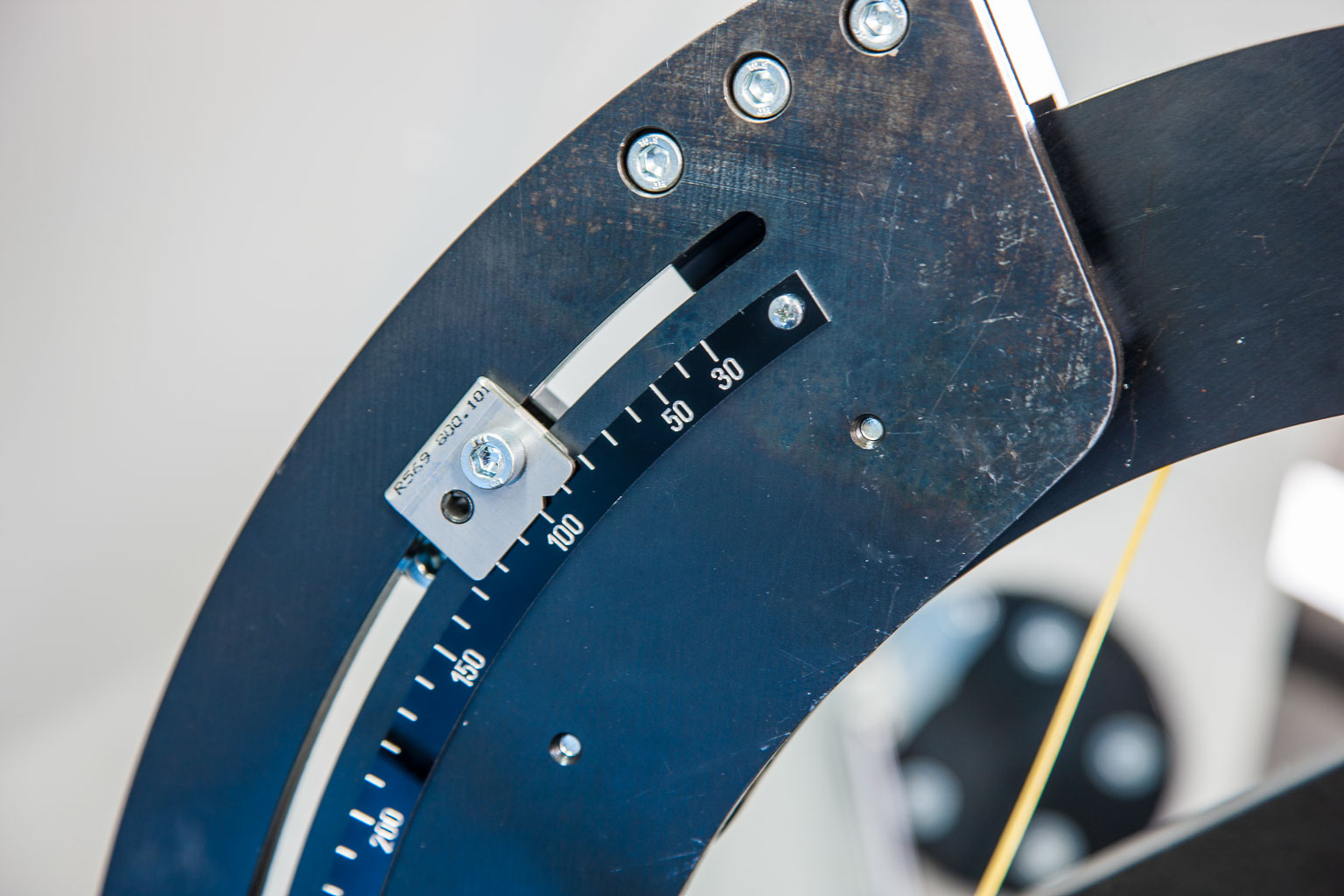

  • One drive belt for all rotor diameters
  • High-performance drive for a large spectrum of different rotors
  • Not affected by interferences
  • Highest measuring accuracy
  • Wide range of accessories

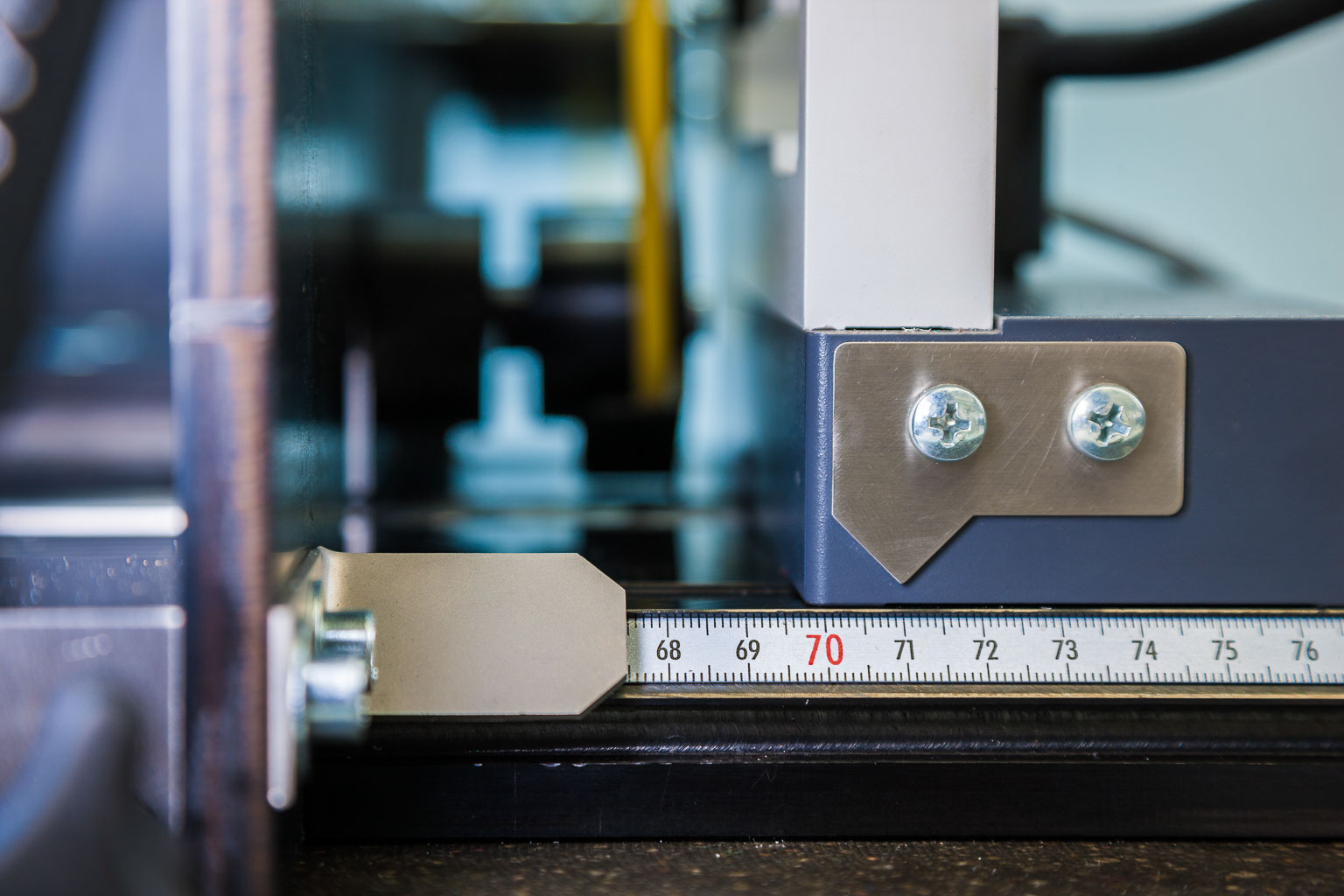

  • Set up requires no tools

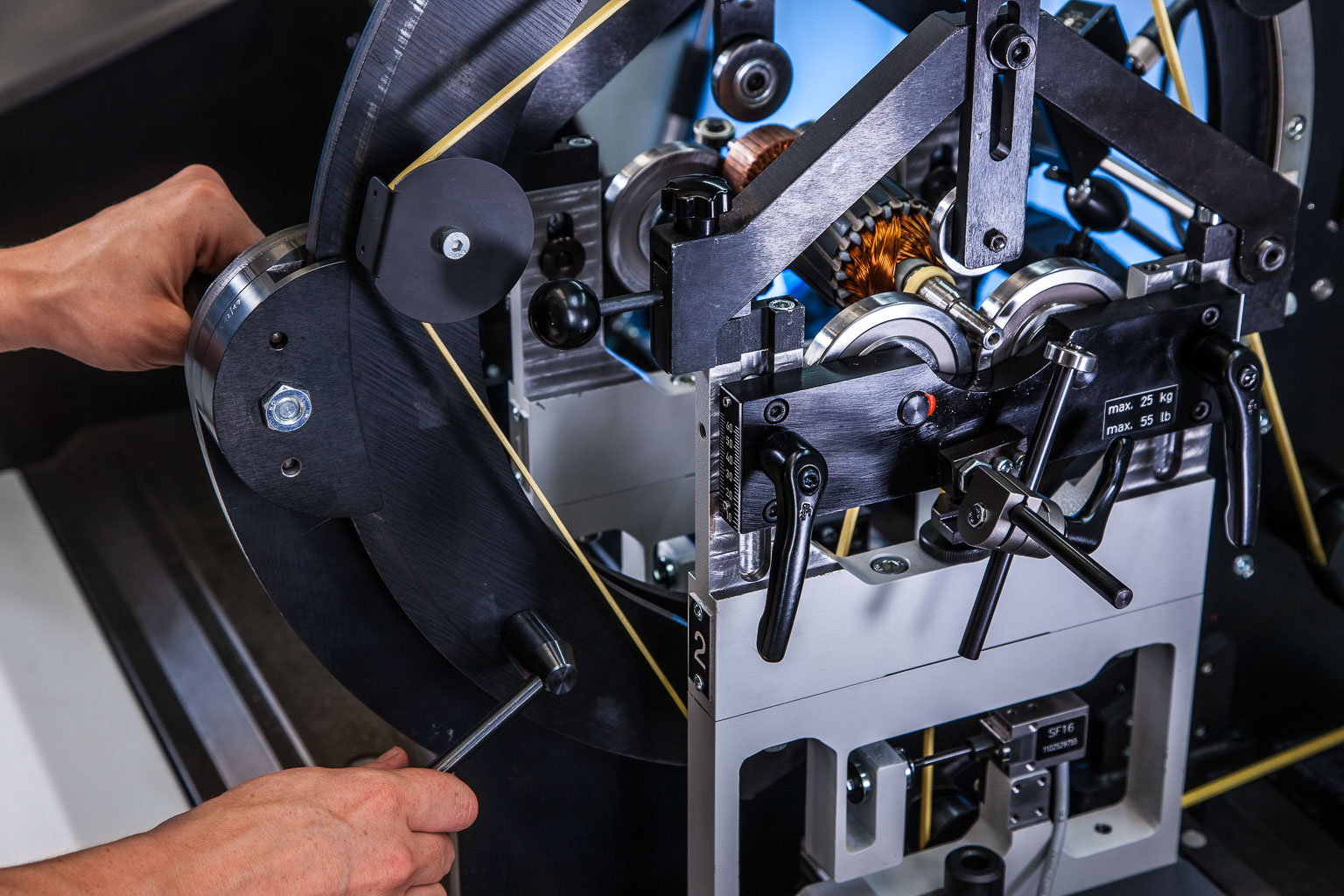

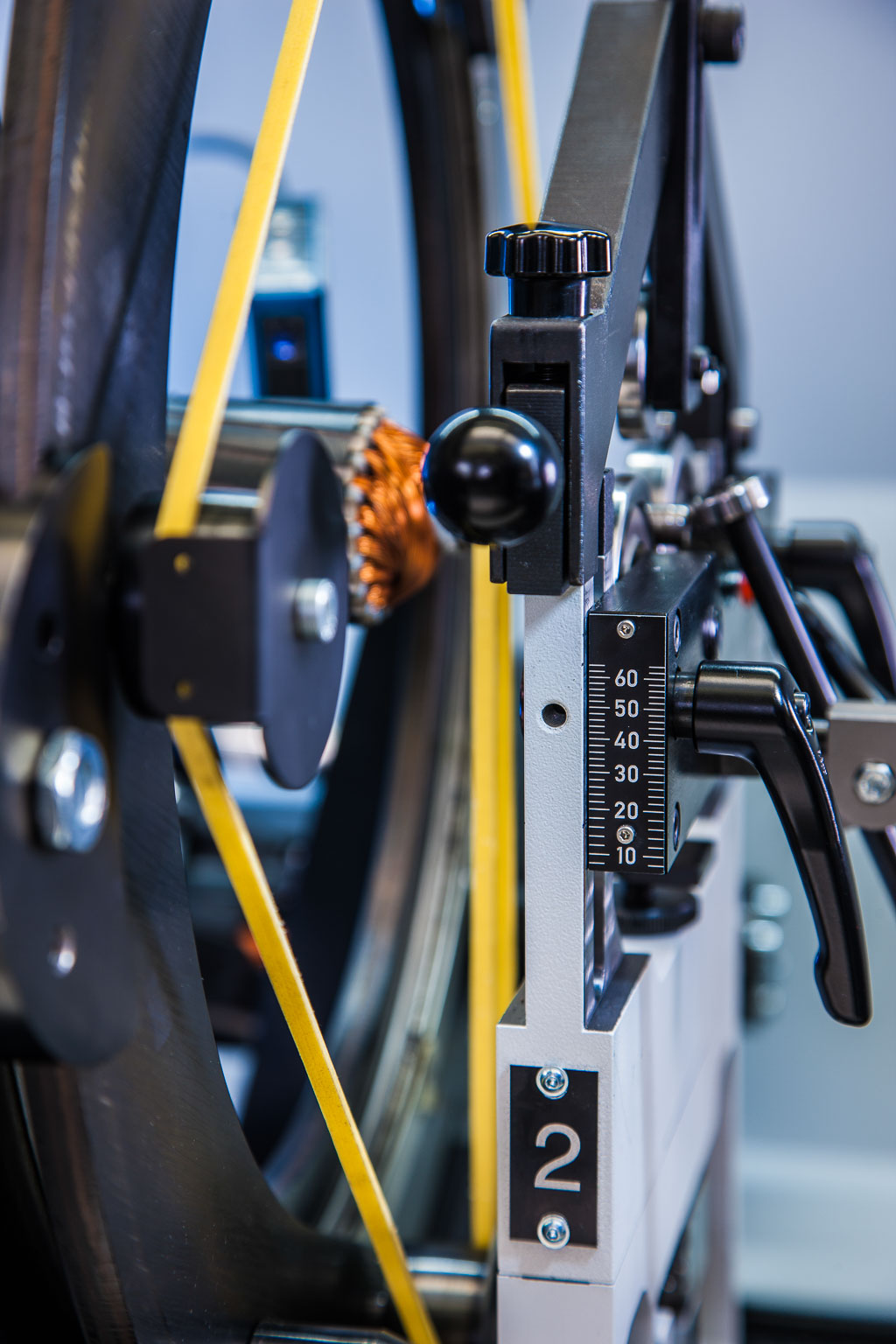

  • One hand belt drive
  • Can be extended with integral mass correction system

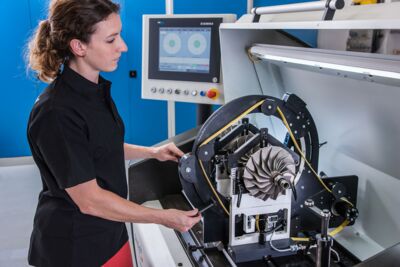

  • Touch screen operation with EasyMode providing simple and reliable operation
  • High process reliability
Design

Range of application

The Pasio 50 enables accurate balancing of a wide range of rotors.

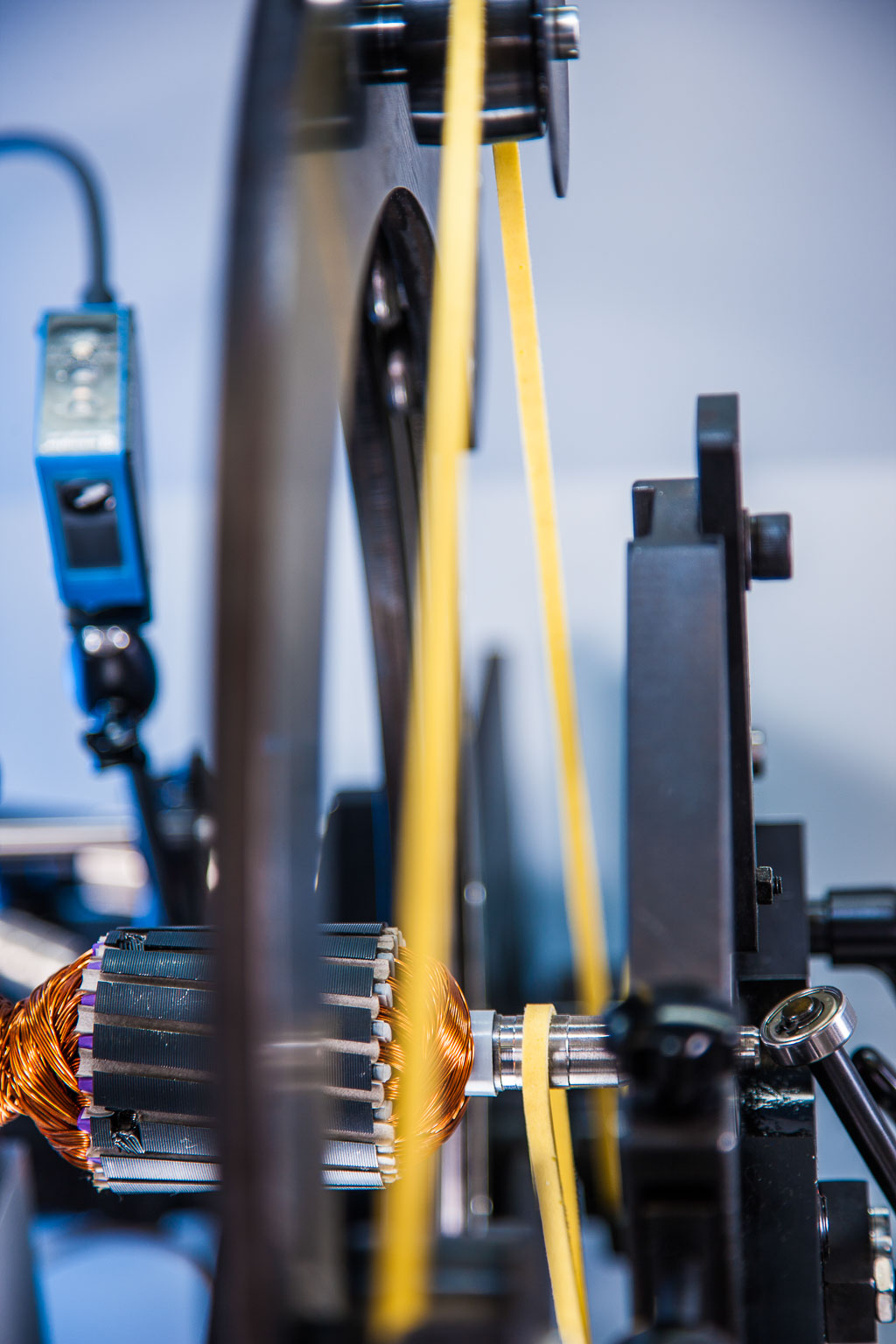

Cylindrical rotors with their own shaft journals as well as disc type rotors with intermediate shafts can be balanced simply and accurately. The rotor can weigh up to 50 kg, with a diameter up to 600 mm and a length up to 1100 mm.

Design

  • Force-measuring, horizontal balancing machine
  • Measuring unit with permanent calibration and digital signal processing
  • Measuring unit CAB 700 with with graphics-capable color LCD display
  • Optional: Measuring device CAB 920 - the high end solution regarding operation, versatility and accuracy
  • Compact design with the machine bed made of mineral cast dampening vibrations
  • Protective shroud of Class C according to ISO7475
Technical data
Data at a glance    Pasio 50
Measuring device    CAB 820
Rotor bearing arrangement    Carrier roller bearing arrangement
Drive type    Overslung belt drive BK
Rotor
Weight, max.  [kg]  50
Diameter, max.  [mm]  600
Bearing clearance  [mm]  40 - 1100
Bearing pin diameter 2)  [mm]  9 - 63
Machine

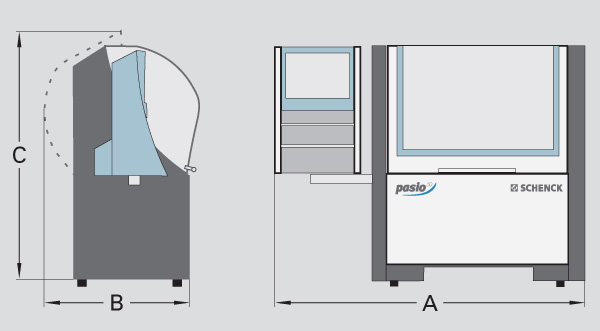

Width A  [mm]  2200
Depth B  [mm]  1010
Height C  [mm]  1765
Total weight  [kg]  1100
Balancing speed  [rpm]  180 - 2700 (variable)
KER 4)  [gmm]  1.0
Air pressure  [kPa]
Power supply    400 V ± 10%, 3 Ph, 50 / 60 Hz
Drive power  [KW]  1.1
Sound Pressure Level (with class C protection)  [LpA [dB(A)]]  < 60

Basic machine  Order no.  R0060300.02
Options
Measuring device CAB 920  Order no.  R0060301.01
Carrier roller bearing for pin diameter    on request
Mass correction system    on request

2) Other data on request
4) Smallest achievable residual unbalance per balancing level
