It isn’t always the most economical solution to have your own machine. Our modern service centers offer you a rotor balancing service. Production series and individual parts are brought up to the required unbalance tolerance, quickly and affordably. We are happy to advise you, even with a commercial comparison of buying your own machine against using our service.

Our trained staff have vast experience with efficient and precise balancing or spin-testing of any type of rotor. Even problematic rotors can be handled quickly and difficult problems solved.

This is what our balancing and spintesting service can do for you:

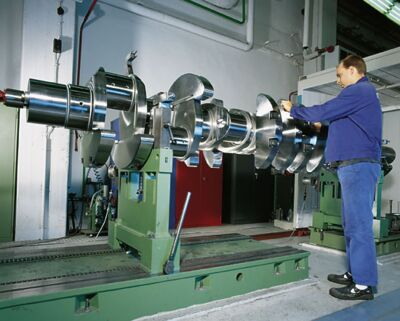

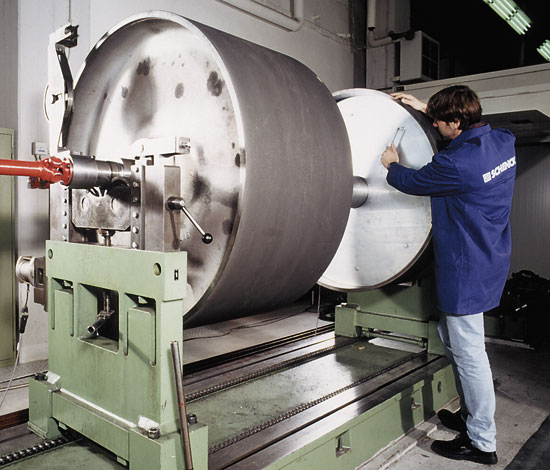

• Balancing of rotors weighing up to 20,000 kg on state-of-the-art balancing machines. Cylindrical rotors up to 7000 mm long and with a maximum diameter of 3400 mm can be balanced in our balancing center. With disc-shaped rotors, the maximum diameter is 4000 mm.
• Balancing of flexible rotors at or near service speed using computer-assisted methods

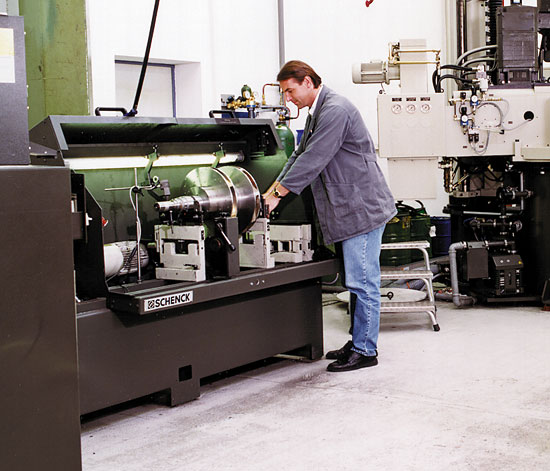

• Precision-balancing to highest accuracies
• Balancing of one-of-a-kind components and batches
• Verification of master rotors (measuring equipment in accordance with DIN EN ISO 9001) and issuing of a test certificate to DIN EN 10204
• Determination of the moment of turbine and jet engine blades up to 2 kgm

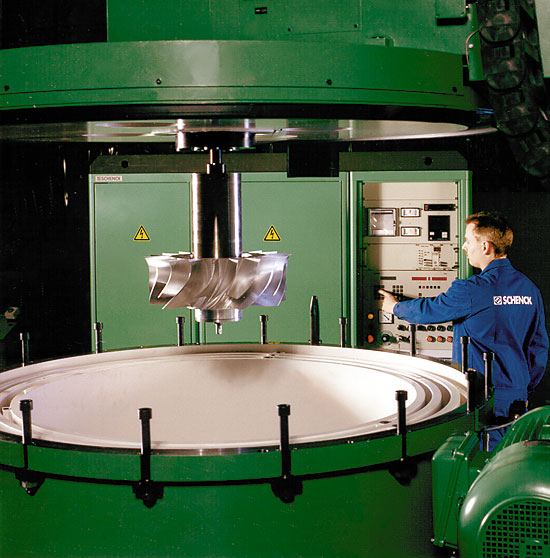

• Spin-testing of rotors weighing up to 400 kg at speeds up to 63,000 min -1

Testing center for balancing systems
Schenck has been manufacturing balancing machine for almost 100 years. During this period, we have had a significant influence on balancing technology and left our mark through our long-standing participation in standards committees. No other company can offer comparable experience and a broader knowledge base when it comes to testing of balancing machines. You will be able to benefit from our extensive knowhow.

In our testing center for balancing system – the first worldwide – we will use traceable methods to perform verification of the following:

• Low-speed horizontal balancing machines
• Low-speed vertical balancing machines
• High-speed balancing systems
• Measuring equipment (Master/test rotors and weights)

Our test center will assist you in the documentation of the quality of your working processes and manufacturing equipment through competent

• Verification of your balancing machines to ISO 2953 and internal test standards
• Verification of the measurement uncertainty and issuing of a test certificate in accordance with the current DIN EN ISO/IEC 17025 standard.

Prove it to your customers! If you wish to safeguard the quality of your production through periodic verification of your machines, contact us at the address below, or visit our website.

Phone: +49 6151 / 32 1298
Fax: +49 6151 / 32 3081
e-mail: service.rotec@schenck.net

Machine market
You are looking for a used machine, a subassembly or a specific component? In that case, our machine market will be the right place for you, where you will be sure to find what you require.

Our latest offers can be found on our website at
http://www.schenck-rotec.com/service
